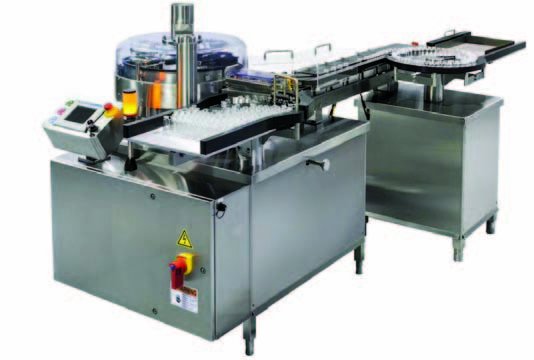

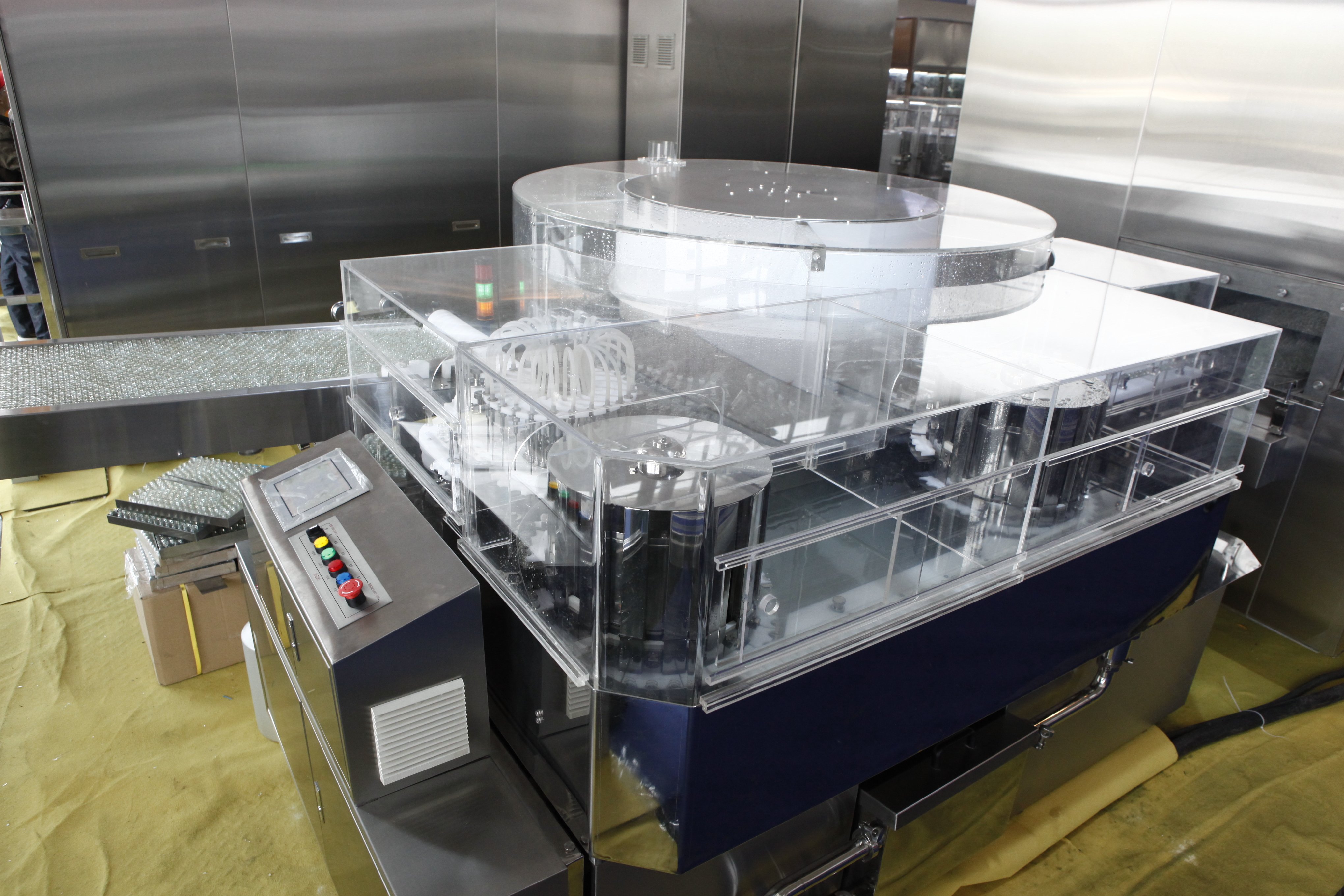

Top Leader Rotary washer are designed to cover the full range of pharmaceutical vials, from 1 to 100ml, both glass and plastic. Output 3,000-24,000 vials/h.

拓领的旋转式清洗机适用于全尺寸的制药用玻璃和塑料材质的西林瓶。从1-100ml, 产量从3000-24000瓶/小时。

Type RW washer is a kind of rotary washer without ultrasonic function. RUW washer has this ultrasonic function.

RW系列是一种不带超声波的旋转式洗瓶机，RUW带有超声波功能。

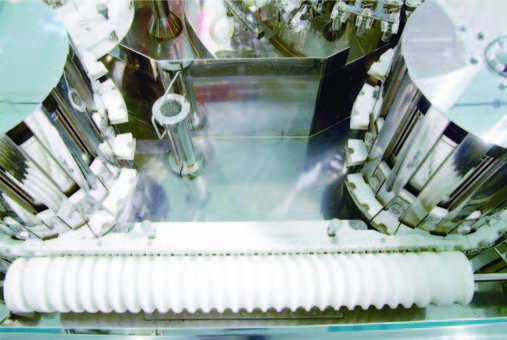

RW and RUW washer are C-GMP design, six washing(3) and air-blow stations(3) for interior and exterior cleaning. They constructed of AISI-304 series stainless steel (non-contact parts) and AISI-316L series stainless steel (contact parts). All piping and all connections are sanitary type; orbital welds are used throughout.

All pipes are sloped to a 2° angle to prevent water stagnation while assuring complete draining of the machine. All components are world-class brand. The standard control system is SIEMENS PLC with touch PC as HMI, conform the rules of GAMP and CFR PART 11. Optional fully servo driven system can guarantee the smooth and reliable running.

RW和RUW旋转式洗瓶机符合现行GMP规范要求，6步内外清洗和吹扫（3水3气）。整机由非接触部分为不锈钢304材质，接触部分为不锈钢316L的卫生型材质组成。 所有管道及连接为卫生级管道，2°度倾斜用于彻底排水，自动轨迹焊接和内窥镜检查。所有组件、仪表采用国际知名品牌，控制系统标配为西门子PLC和触摸式PC工控机，符合GAMP及CFR PART 11规范。 可选全伺服系统确保整机运行更加平稳可靠。





Feature 特点
RW washer	RUW washer
15 minutes changeover to a different vial format 15分钟更换模具	20 minutes changeover to a different vial format 20分钟更换模具
small foot print ,Compact design 小型化设计，占地小	Exclusive rotary washer with the equal-time and equal-result for ultrasonic washing in China. Every vial will finish the ultrasonic washing in same period. 国内目前唯一生产用于超声波清洗等时、等效的立式洗瓶机：每一只西林瓶都是在相等时间内完成超声波清洗
No penetrating nozzles; no glass breakage, less particulate generation 没有插入的喷嘴，没有破瓶，没有粒子产生。	Technology from SUZUKI Japan. 技术来源于日本铃木。
No belts, no chains, no gears, no moving parts 没有皮带，没有链条，没有齿轮，也没有运动部件	No lubricating oil 无润滑油
Suitable for the better quality or unable ultrasonic vials. 适用于质量较好或无法超声的西林瓶。	Penetrating nozzles for the very dirty and lower quality vials. Breakage rate ＜0.01% 插入式喷头用于较脏或质量稍差的瓶子。破损率＜0.01%。
Specifically designed for Lab & Clinical Studies, Contract Manufacturing Organizations (CMO's) and Start-up Companies for small business batches with multi volume. 非常适合实验室或临床研究，CMO生产或初创企业多规格小批量商业生产。	Specifically designed for Industrial consequent production. 非常适合工业化连续性生产。

Vials 西林瓶			Output (vials/minute) 速度 (瓶/分钟)
Format 规格	φ(mm) 直径	Height (mm) 高度	RW/RUW 50	RW/RUW 120	RW/RUW 200	RW/RUW 400	Customized
2R	16	35	60	120	200	400	≥400
